Product Introduction

Mirrordick High-Precision Mirror EDM machine A Series is a classic model. It features a machine body made of Meehanite cast iron meeting FC300 or higher standards, paired with a natural marble worktable for stable machining performance. The system incorporates a PIKA ultra-precision mirror discharge circuit and provides 66 workpiece coordinate systems. It meets the high standards of the automotive, aerospace, and precision mold industries, representing a cost-effective choice proven by long-term market validation.

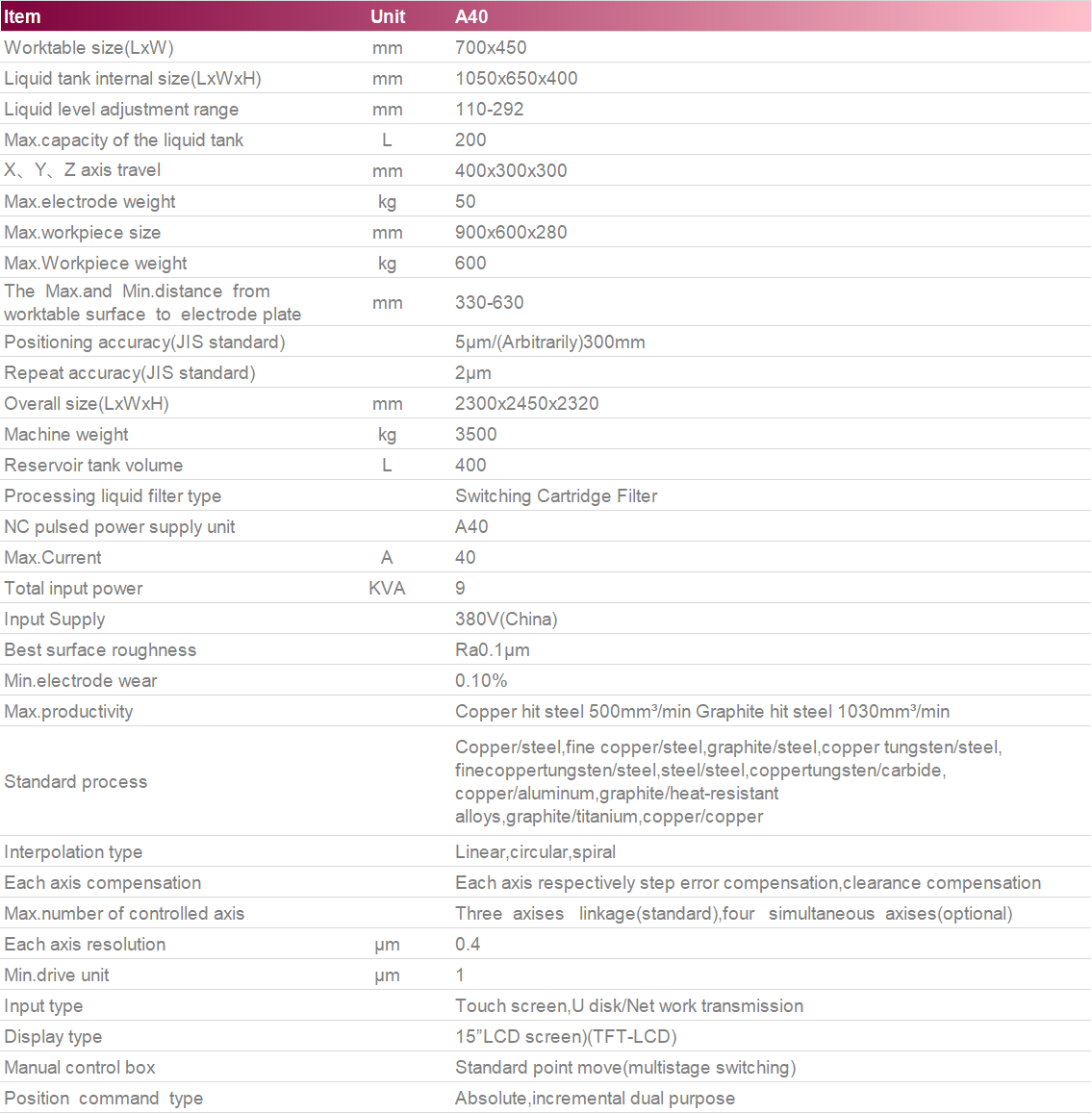

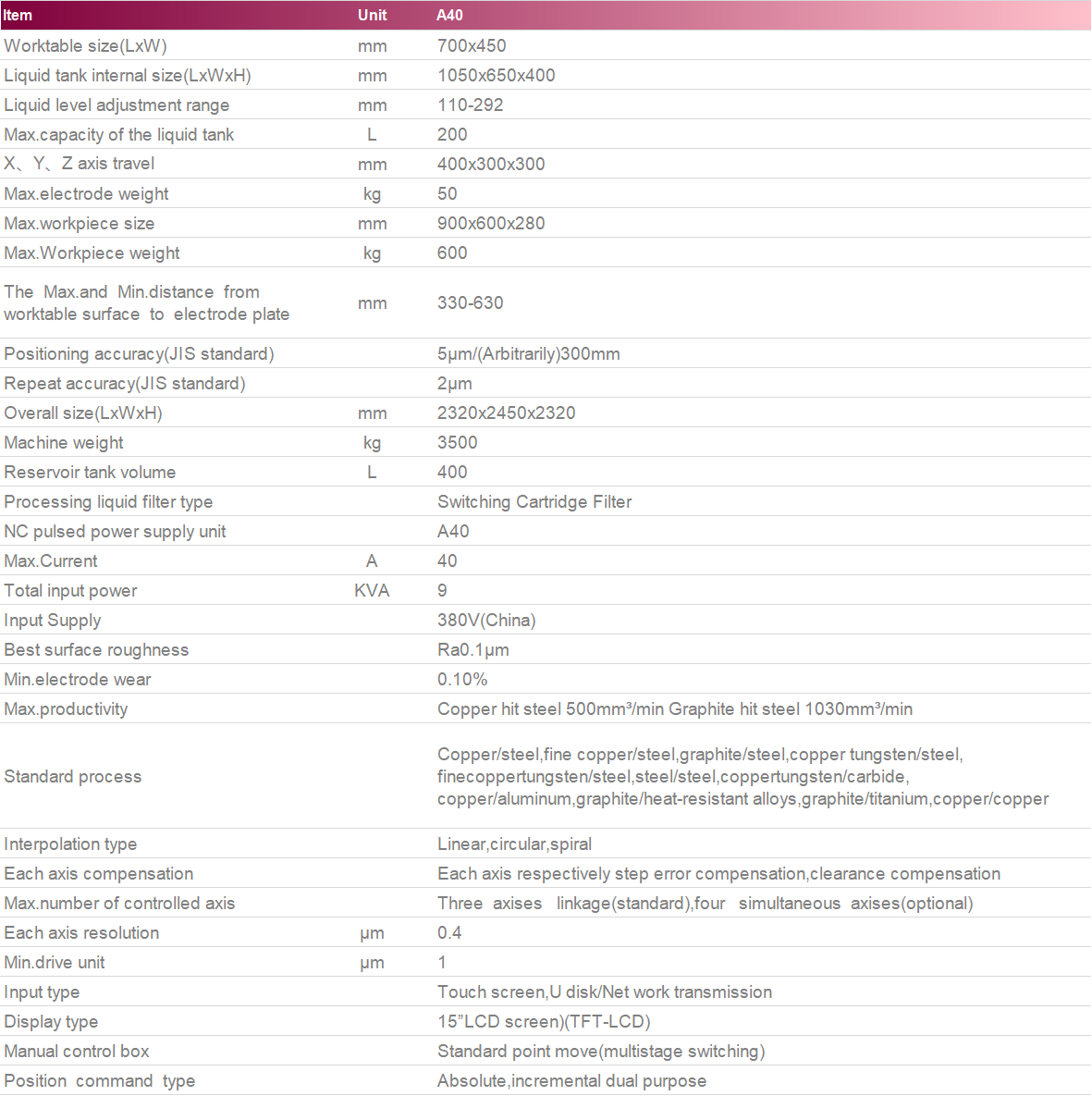

Technique Parameters

Key Features

▶Windows operating system, standard networking function and file transmission,it can be extended to remote wireless operation/dynamic monitoring and to realize internet +automated intelligent production line

▶66 work-pieces coordinate system can be displayed, programming-free,CNC machining programme can be generated automatically according to the interface parameters system

▶The discharge parameters can be modified in real time without suspending during discharge machining

▶According to the processing requirements,the height and interval of the long tool can be set to facilitate slag discharge

▶With a variety of processing functions: 3-axies to multi-axes different trajectory linkage processing, multi-hole automatic shift processing of porous position, transverse processing,45-degree oblique processing, inverted buckle processing, grain surface mirror processing etc., high processing efficiency, small loss of superior processing performance

▶The system is equipped with independent discharge circuits for a variety of material processing: Copper hit steel,graphite hit steel,copper-tungsten hit carbide, copper hit zinc alloy, graphite hit zinc alloy,copper hit copper alloy etc.

▶Made of natural marble, the worktable will move while the head remains stationary during machining

Product Advantages

Superior Surface Quality – Achieves mirror-grade finishing, meeting the needs of industries requiring extreme surface smoothness.

Enhanced Productivity – Automated electrode changes and detection reduce downtime and maximize production output.

Smart Manufacturing Ready – Compatible with digital data management, making it ideal for Industry 4.0 applications.

Energy & Cost Efficiency – Optimized spark control minimizes energy waste and reduces processing costs.

Global Service Support – Mirrordick provides free technical consulting, lifetime upgrades, and professional after-sales service worldwide.

Reliable and Durable – Built with patented technologies and strict quality standards to ensure consistent long-term performance.

Application Fields

The A40 Mirror EDM machine tool equipment is suitable for a wide range of high-precision applications, including:

Mold Manufacturing – Plastic injection molds, die-casting molds, and precision stamping molds.

Electronics Industry – Semiconductor molds, precision connectors, and housings.

Automotive Components – Complex parts requiring tight tolerances and superior surface finish.

Aerospace – Machining parts with complex geometries and high accuracy standards.

Medical Equipment – Surgical instruments, implants, and medical device components with stringent precision requirements.

Industrial Tooling – Precision dies and tooling parts for advanced manufacturing.

FAQ (Frequently Asked Questions)

Q1: What is the main difference between the A40 and traditional EDM machines?
A1: The A40 is specifically designed for mirror finishing with ultra-precision, offering intelligent automation features that reduce manual polishing and ensure higher efficiency compared to traditional EDM machines.

Q2: Can the A40 be integrated into smart factory systems?
A2: Yes. The A40 is equipped with open data communication ports and a Windows CNC platform, making it fully compatible with Industry 4.0 smart manufacturing systems.

Q3: Which industries benefit the most from the A40?
A3: The A40 is widely used in mold manufacturing, aerospace, medical devices, electronics, and automotive industries that require high precision and superior surface finishing.

Q4: What optional functions are available for the A40?

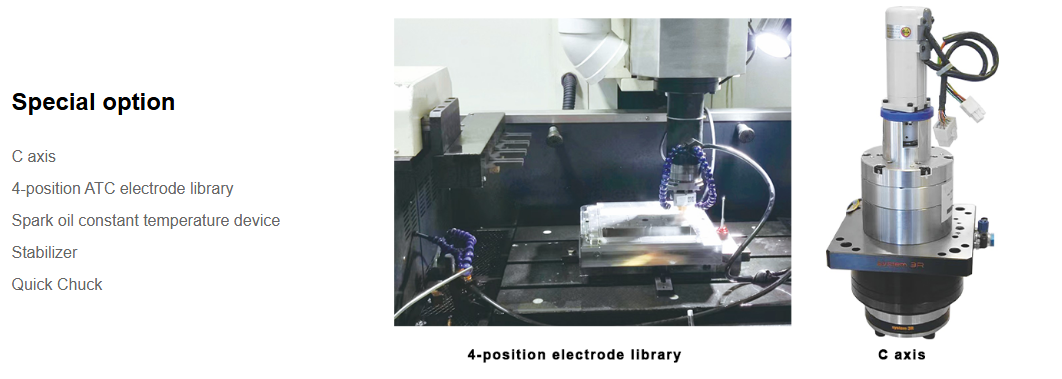

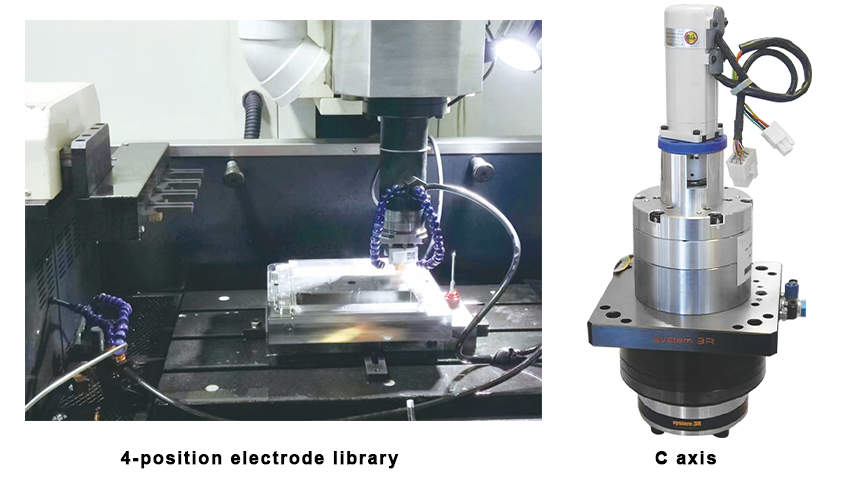

A4: Optional functions include automatic oil tank lifting, multi-station ATC electrode libraries, and 3D online measurement systems, all of which improve productivity and machining accuracy.

Q5: What after-sales services are provided?
A5: Mirrordick provides free lifetime technical support, processing technique consultation, and system upgrades, ensuring customers always enjoy reliable machine operation.
