Product Introduction

The AM300R Precision Double-Head Mirror EDM machine is designed and manufactured by Mirrordick, a leading high-tech enterprise specializing in precision mirror EDM technology. Equipped with a Windows-based control system, automatic oil tank lifting, 3D online detection, and a multi-station ATC electrode library, this machine ensures ultra-precise surface finishing, efficient automation, and stable performance for intricate industrial applications. It is ideal for mold manufacturing, aerospace, medical devices, and high-end precision parts processing.

Special option

Spark oil constant temperature device

Electric control box thermostat

Stabilizer

Quick Chuck

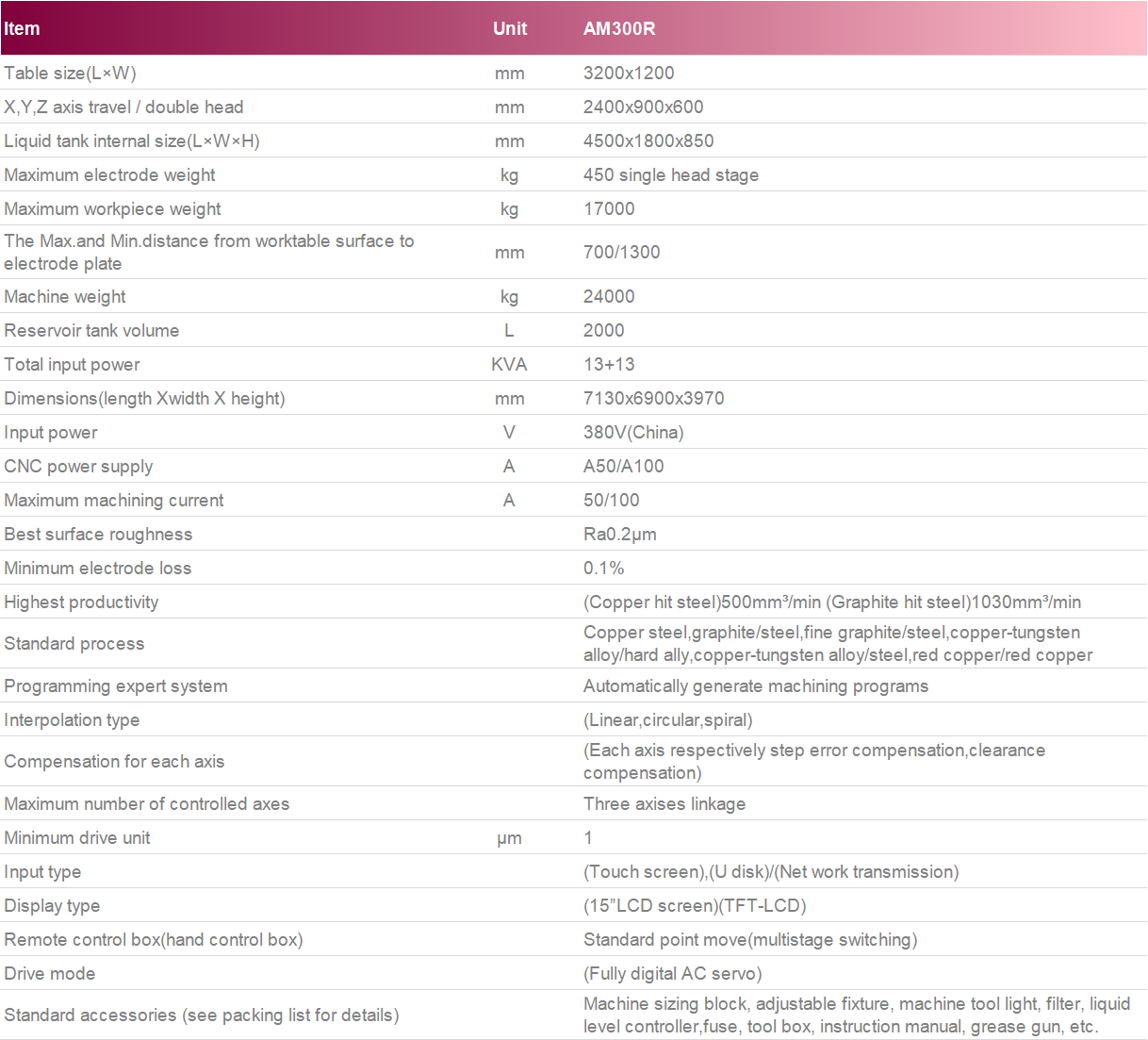

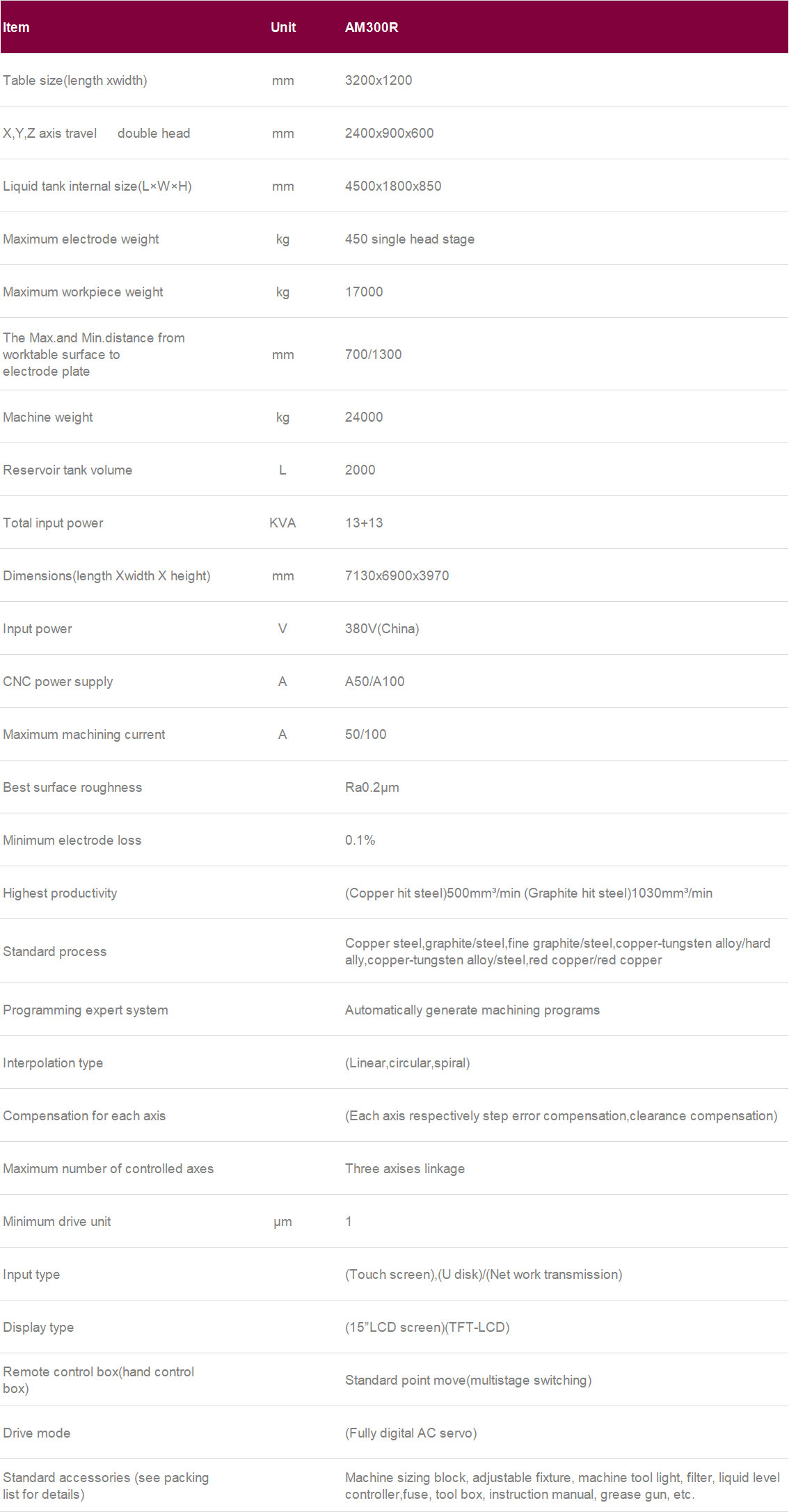

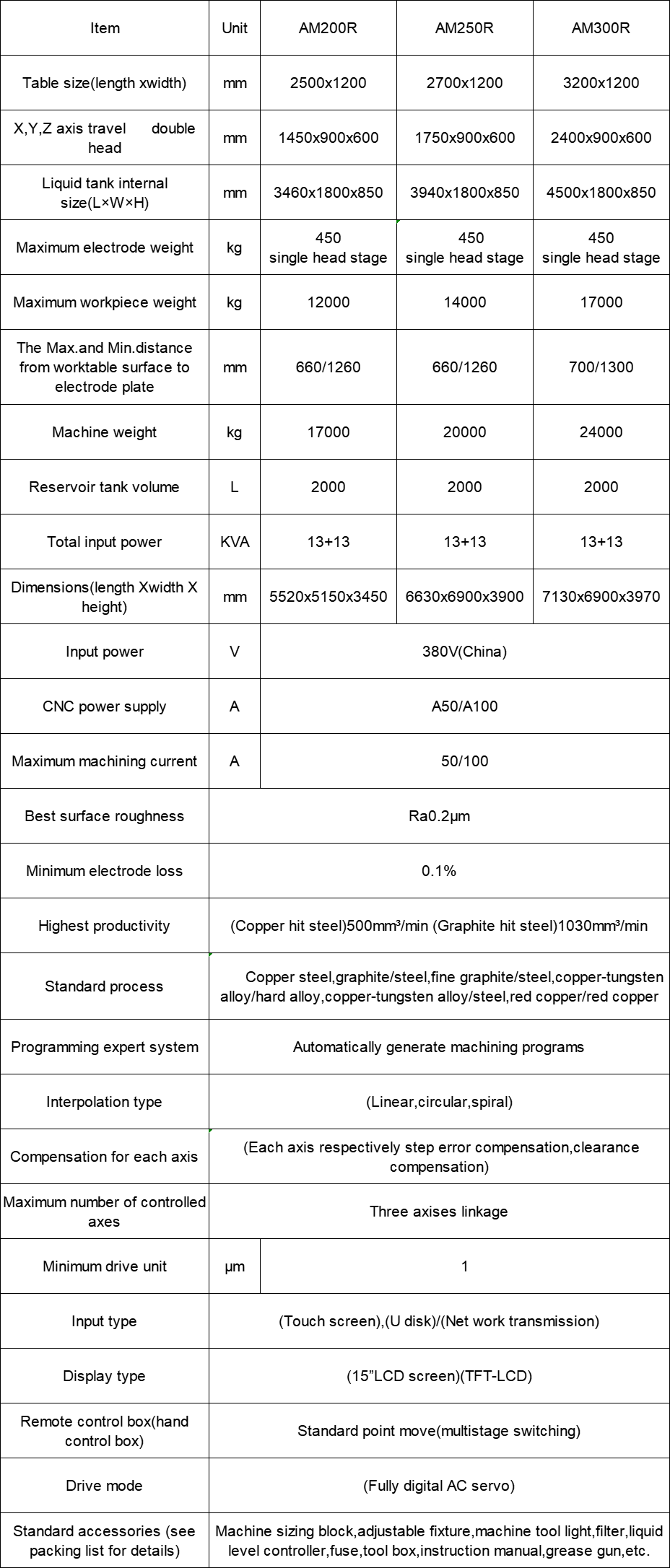

Technique Parameters

Key Features

▶Windows operating system, standard networking function and file transmission,it can be extended to remote wireless operation/dynamic monitoring and to realize internet +automated intelligent production line

▶66 work-pieces coordinate system can be displayed, programming-free,CNC machining programme can be generated automatically according to the interface parameters system

▶The discharge parameters can be modified in real time without suspending during discharge machining

▶According to the processing requirements,the height and interval of the long tool can be set to facilitate slag discharge

▶With a variety of processing functions: 3-axies to multi-axes different trajectory linkage processing, multi-hole automatic shift processing of porous position, transverse processing,45-degree oblique processing, inverted buckle processing, grain surface mirror processing etc., high processing efficiency, small loss of superior processing performance

▶The system is equipped with independent discharge circuits for a variety of material processing: Copper hit steel,graphite hit steel,copper-tungsten hit carbide, copper hit zinc alloy, graphite hit zinc alloy,copper hit copper alloy etc.

▶Made of natural marble, the worktable will move while the head remains stationary during machining

Advantages

High Precision & Repeatability: Ideal for micro-machining and complex geometries.

Automation Ready: Compatible with MES/ERP systems; supports unmanned operation.

Low Maintenance: Designed for ease of service and long-term reliability.

Global Support: Backed by Mirrordick service centers in Vietnam, India, and other regions.

Lifetime Upgrades: Free system updates and technical support forever.

Frequently Asked Questions (FAQ)

Q1: What surface roughness can the AM300R achieve?
A: It can achieve a mirror-like finish with surface roughness as low as Ra ≤ 0.1µm.

Q2: Does the machine support automated production lines?
A: Yes, it offers open data interfaces and is compatible with automated systems for smart manufacturing.

Q3: What kind of technical support is provided?
A: Mirrordick offers lifelong free system upgrades and unlimited technical support for machining processes.

Q4: Where are your service centers located?
A: We have experience centers in Vietnam and India, and partners worldwide to ensure prompt service.

Q5: Can the machine run continuously?
A: Yes, the AM300R is built for stability and supports long-duration uninterrupted operation.
